Single Head Auto Polish

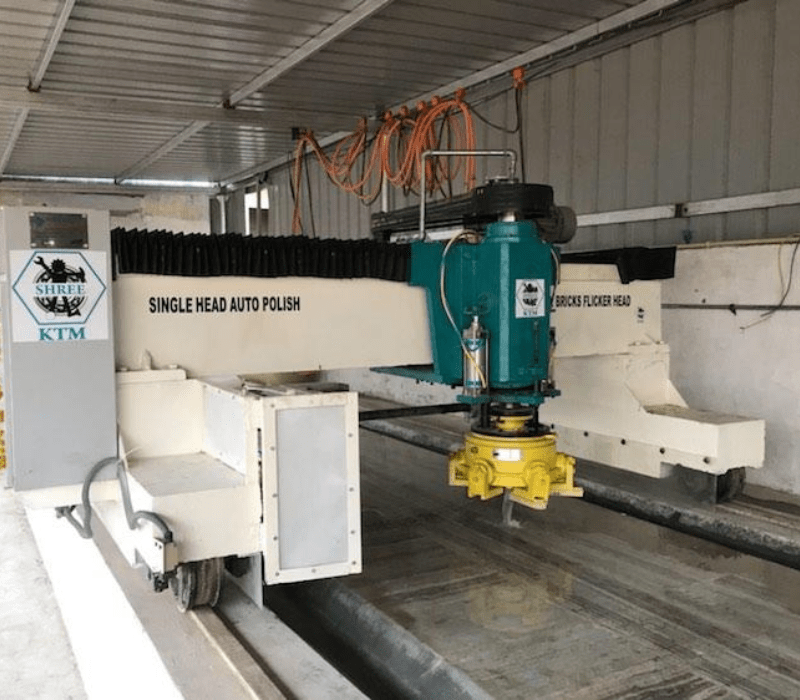

Single Head Auto Polish Machine

The Single Head Auto Polish Machine is engineered with one high-performance operating spindle that smoothly slides on precision rails, ensuring stable and accurate movement during the polishing process. The material to be polished is securely placed on a cemented working surface, providing strong support and vibration-free operation.

The slab or component undergoes finishing through multiple passes, where abrasives are replaced progressively with finer grains in each passage. This step-by-step refinement process ensures a smooth, uniform, and high-gloss surface finish with excellent scratch removal and detailing.

Once the complete polishing cycle is finished, the machine automatically returns to its starting position, enhancing operational efficiency and reducing manual intervention. With its robust construction, automated movement, and consistent polishing performance, the Single Head Auto Polish Machine is ideal for industries requiring precise and high-quality surface finishing.




Technical Specifications

Specification Details
Machine Type Bridge Polisher – Single Head
Main Motor Power 15 HP
Up-Down Stroke 125 mm
Bridge Motor Power 2 HP
Long Travel Motor Power 2 HP
Max. Processing Thickness 60 mm
Max. Polishing Size (L × W) 3600 × 1600 mm
Compressed Air Pressure 6 – 8 kg/cm² (bar)
Water Consumption 180 Liter / Hour
Control Panel Fully Automatic Computerized, PLC & HMI Control System
