Shree Krishna Techno Machines (Shree KTM) is a leading Indian manufacturer and supplier of stone-processing machinery, based in Ajmer, Rajasthan, India
Founded in the early 2010s (around 2009–2014), the company has established itself as a trusted name in stone cutting and polishing equipment by combining modern manufacturing practices with customer-focused engineering solutions

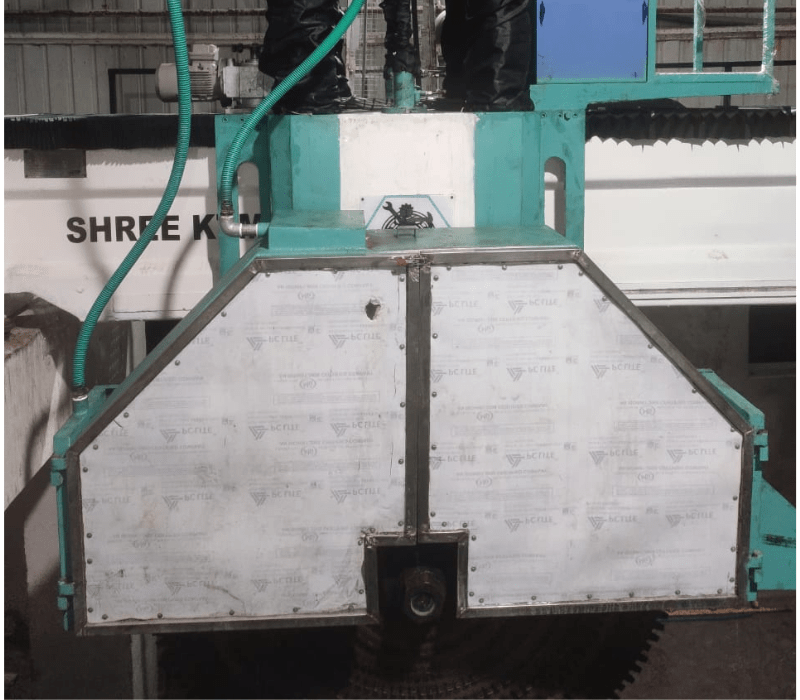

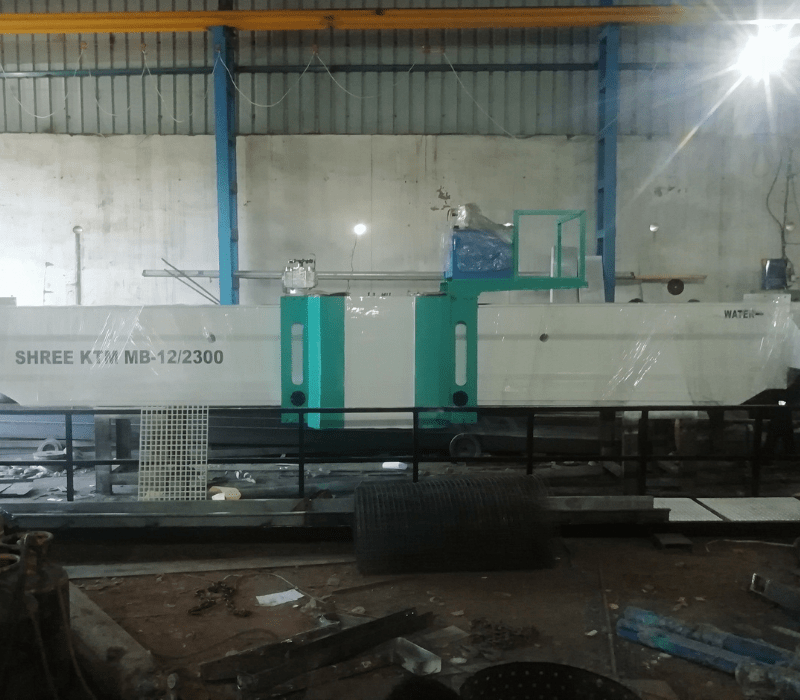

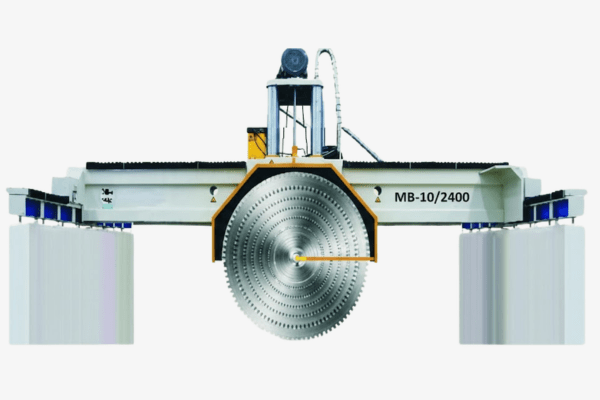

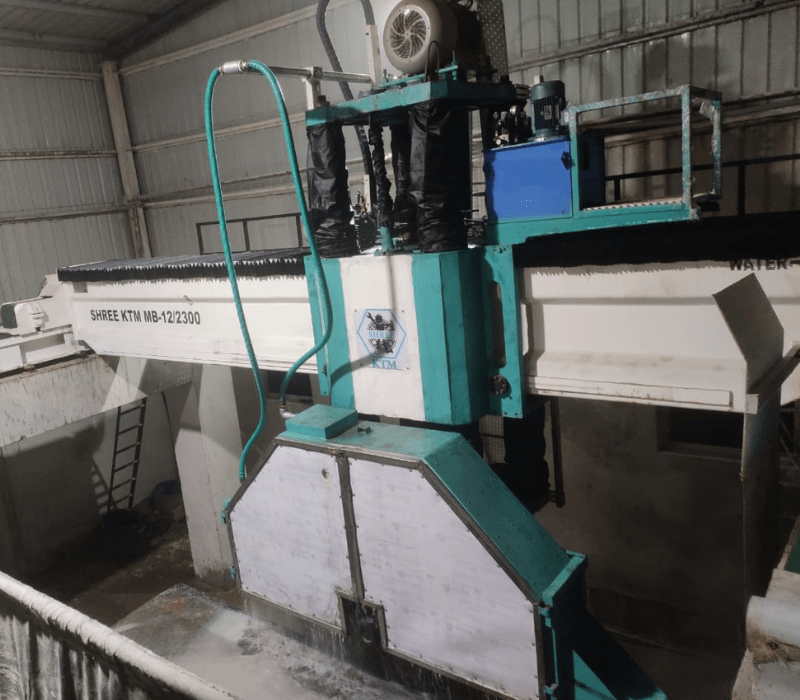

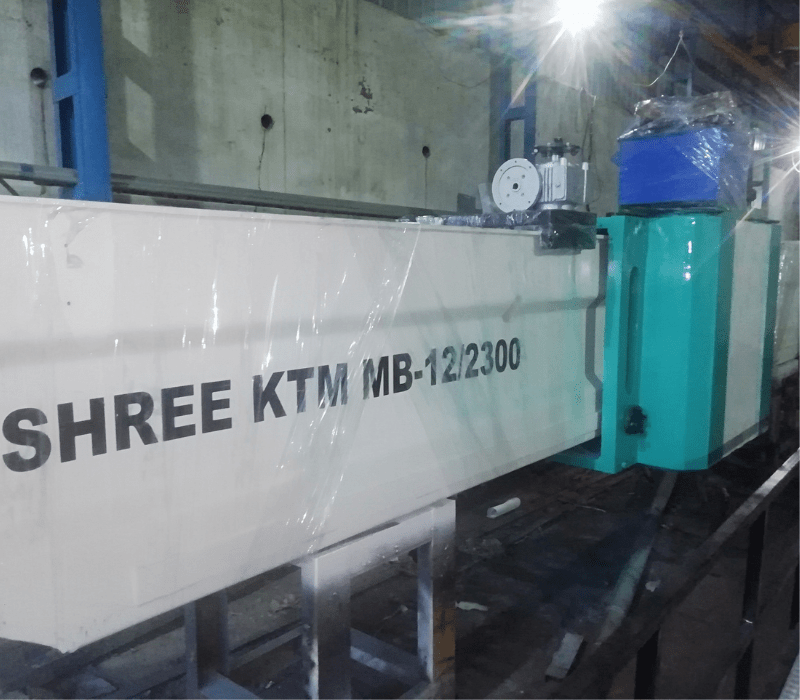

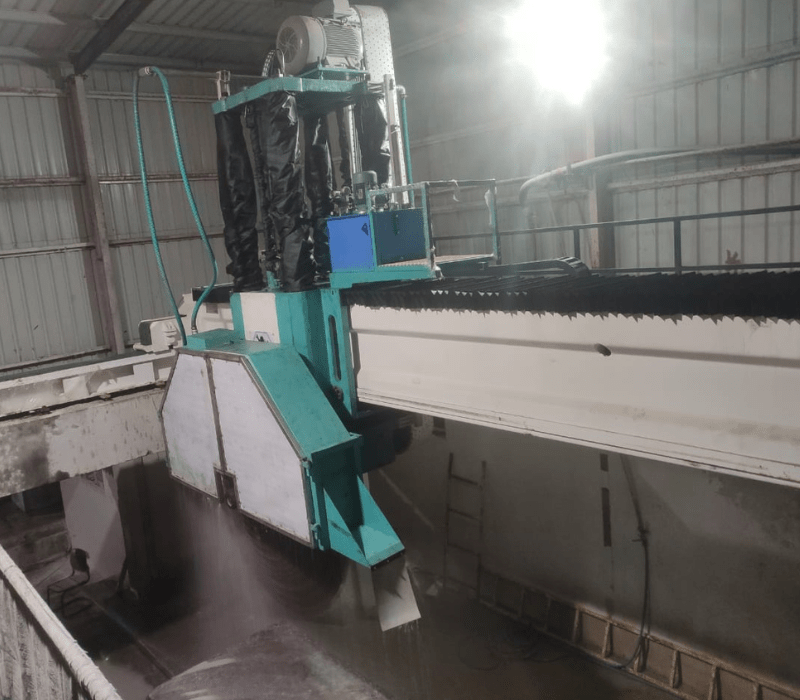

The Bridge Type Multi Blade Block Cutter is a heavy-duty stone cutting machine designed for precise and efficient slicing of large stone blocks into multiple slabs in a single operation. Its rigid bridge-type structure ensures stability, straight cutting accuracy, and smooth blade movement.
Manufactured by Shree Krishna Techno Machines, this 12 Blade Multi Cutter supports 2200 mm to 3500 mm blade sizes and is available in Up Cutting and Slide Cutting models. The machine features a heavy MS fabricated bridge beam filled with concrete for extra strength and vibration control, along with linear guideways for smooth motion.
Equipped with a hydraulic up & down system and a fully automatic PLC control system, it delivers reliable, high-precision performance for granite and natural stone processing.
| Multi Cutter | Model – 1 | Model – 2 |
|---|---|---|
| Machine Type | UP / Side Cutting | UP / Side Cutting |
| Blade Diameter (mm) | 2200 / 2500 mm | 3000 / 3500 mm |
| Beam Length (mm) | 7500 / 9000 mm | 8500 / 10000 mm |
| Suitable Cutting Length (Feet) | 12’ | 12’ |
| Cutting Depth (mm/Inch) | 950 – 1075 mm / 37” – 42” | 1300 – 1500 mm / 51” – 60” |
| Max. Number Of Blade | 12 | 6 |
| Max. Horizontal Stroke (X Axis) | 4000 | 4000 |
| Slicing Stroke (Y Axis) | 3000 | 3000 |
| Max. Up-Down Stoke (Z Axis) | 1450 / 850 | 1450 / 850 |
| Main Motor Power | 75 HP (1440 RPM) | 75 / 100 HP (960 RPM) |
| Trolley Size (Manual) | 10’ × 10’ Fabricated By 8 Inch Channel | |
| Panel | Fully Automatic Computerized, PLC & HMI Control System | |
| Total Power | 83 HP | 85 / 110 HP |
1. Heavy-Duty Bridge Structure for Stability
We design our machines with a reinforced bridge framework that ensures vibration-free performance. This stability allows the Bridge Multi Blade Block Cutter to maintain precise alignment during high-speed cutting operations.
2. Multi-Blade Configuration for High Productivity
Our machine supports multiple blades operating simultaneously, significantly increasing cutting capacity. This results in faster production cycles and optimized workflow efficiency.
3. Precision Engineering for Uniform Output
Each component is manufactured with high-precision CNC machining, ensuring that every slab produced meets strict dimensional standards. Consistency in thickness and finish enhances the value of the final product.
4. Advanced Control System
We integrate user-friendly control panels that allow operators to manage speed, cutting depth, and blade positioning with ease. Automation reduces human error and improves productivity.
5. Energy-Efficient Operation
Our machines are built with optimized power consumption systems, ensuring reduced energy usage without compromising performance. This leads to lower operational costs and higher profitability.
1. Superior Build Quality
We use premium-grade raw materials and advanced manufacturing techniques to ensure long-lasting performance.
2. High Cutting Accuracy
Our Bridge Multi Blade Block Cutter delivers precise cuts with minimal deviation, ensuring high-quality output.
3. Reduced Maintenance Requirements
Our machines are engineered for low maintenance, minimizing downtime and ensuring continuous production.
4. Customization Options
We offer tailored solutions based on client requirements, including blade configurations, machine size, and automation features.
5. Reliable After-Sales Support
We provide comprehensive technical support, ensuring smooth operation and quick resolution of any issues.
We focus on integrating modern engineering techniques that maximize productivity. Our Bridge Multi Blade Block Cutter is designed to:
By adopting our technology, businesses can achieve higher production output and improved operational efficiency.
At Shree Krishna Techno Machines, innovation drives everything we do. We continuously invest in research and development to enhance our machinery and meet the evolving needs of the industry.
Our team of experts works relentlessly to ensure that every Bridge Multi Blade Block Cutter we manufacture meets the highest standards of quality, performance, and reliability.
The success of our machinery lies in its ability to deliver:
These advantages make our machines the preferred choice for businesses seeking efficient and reliable stone processing solutions.
We at Shree Krishna Techno Machines are committed to delivering world-class industrial machinery that empowers businesses to achieve excellence. Our Bridge Multi Blade Block Cutter represents the perfect blend of innovation, durability, and performance, making it an essential investment for modern stone processing industries.
By choosing our advanced cutting solutions, businesses can enhance productivity, reduce costs, and maintain superior product quality—ensuring long-term success in a competitive market.
Contact us today to explore high-performance machinery solutions tailored to your industrial needs.
