Shree Krishna Techno Machines (Shree KTM) is a leading Indian manufacturer and supplier of stone-processing machinery, based in Ajmer, Rajasthan, India
Founded in the early 2010s (around 2009–2014), the company has established itself as a trusted name in stone cutting and polishing equipment by combining modern manufacturing practices with customer-focused engineering solutions

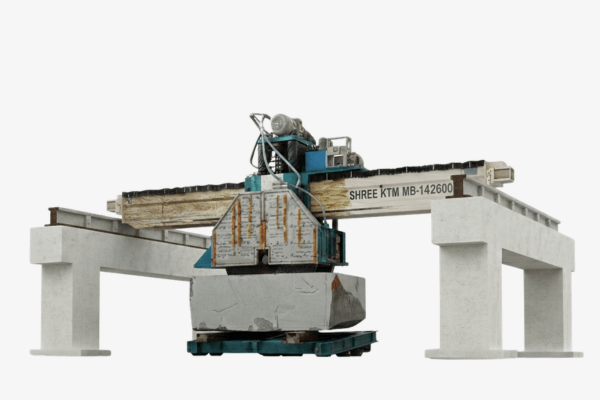

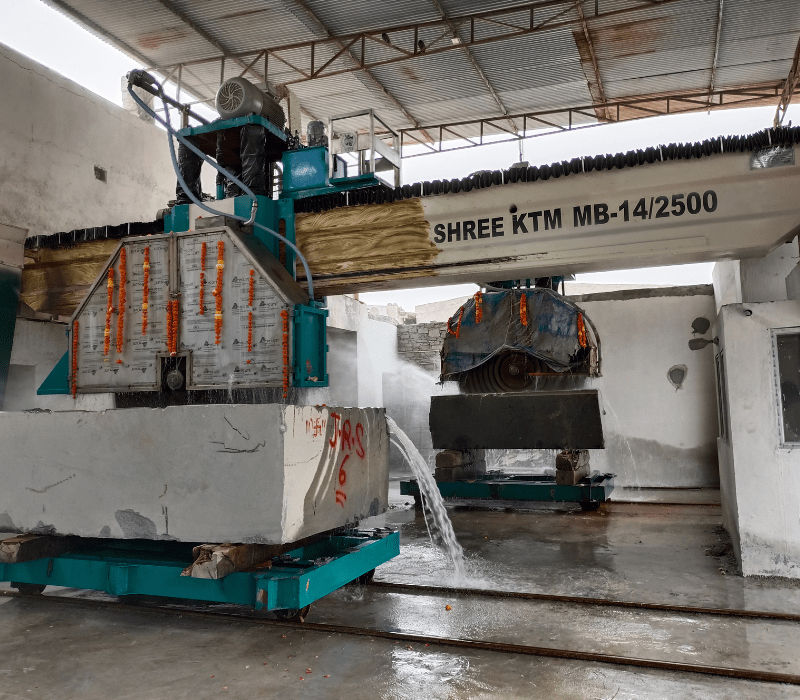

The 14 Blade Single RPM Multi Blade Granite Cutting Machine is a heavy-duty, fully automatic industrial solution designed for high-precision cutting of granite blocks into uniform slabs. Equipped with multiple diamond blades mounted on a single spindle, the machine ensures simultaneous cutting, resulting in higher productivity, consistent thickness, and superior surface finish.
Its robust bridge structure, powerful motor system, and precision guiding mechanism enable smooth and vibration-free operation even during long working hours. The single-RPM spindle configuration provides stable cutting speed, ensuring accuracy and longer blade life while maintaining energy efficiency.
The machine is integrated with advanced PLC-based control and user-friendly interface, allowing operators to manage feed speed, cutting depth, and movement with ease.
| Parts Name | Description |
|---|---|
| Beam (Bed) Size | Mild steel beam length 9 meter / 30 feet, suitable for 12’ cutting with Hiwin make 55mm linear guideway, rack & pinion system. |
| Blade Diameter (mm) | 2400 / 2500 mm (Blade Bore Ø130) |
| Suitable Cutting Length (Feet) | 12′ |
| Cutting Depth (mm/Inch) | 1075 / 42″ |
| Max. Horizontal Stroke (X Axis) | 4000 |
| Max. Number Of Blade | 14 |
| Slicing Stroke (Y Axis) | 4200 |
| Max. Up-Down Stroke (Z Axis) | 1400 |
| Main Motor Power | 120 HP (960 RPM), IE-3 |
| Trolley Size (Manual) | 10′ × 10′ fabricated by 8 inch MS girder |
| Panel | Fully automatic computerized PLC & HMI control system |
| Total Power | 130 HP |
