Shree Krishna Techno Machines (Shree KTM) is a leading Indian manufacturer and supplier of stone-processing machinery, based in Ajmer, Rajasthan, India
Founded in the early 2010s (around 2009–2014), the company has established itself as a trusted name in stone cutting and polishing equipment by combining modern manufacturing practices with customer-focused engineering solutions

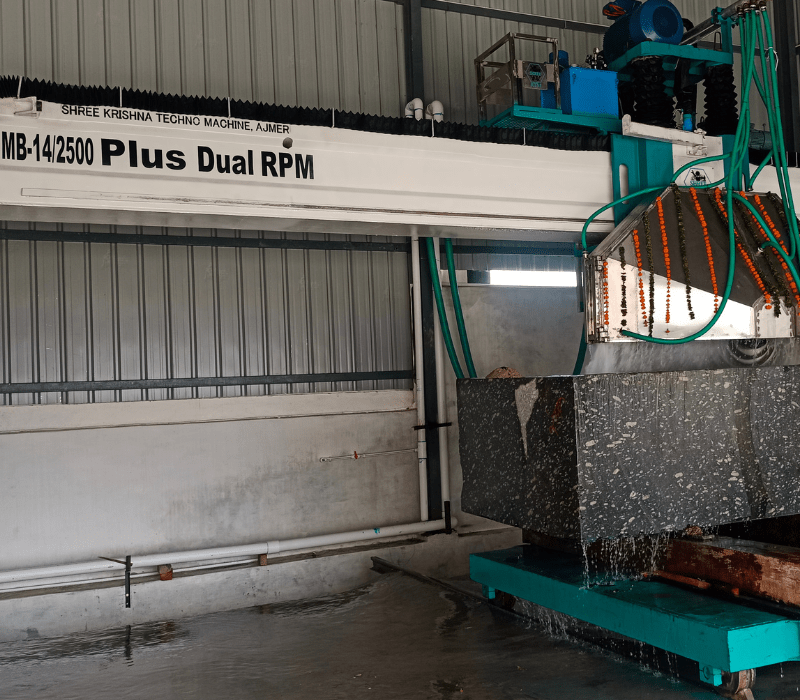

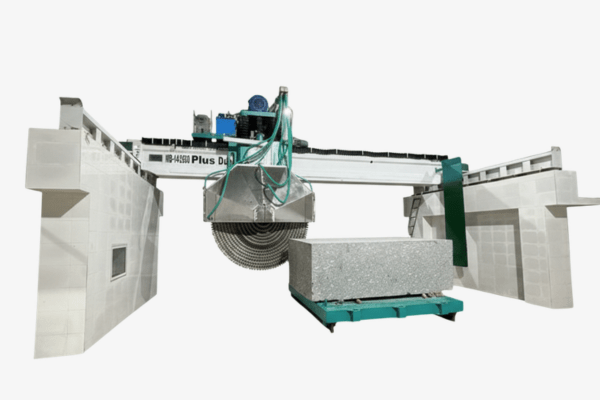

The 14 Blade Dual RPM Multi Blade Granite Cutting Machine is a high-performance solution designed for precise cutting of large granite blocks into uniform slabs. Built with a heavy-duty bridge structure and multi-blade spindle system, it enables simultaneous cutting with high productivity and excellent dimensional accuracy.
The advanced Dual RPM drive technology allows operators to select different spindle speeds according to granite hardness and cutting requirements. This helps achieve better cutting efficiency, improved surface finish, reduced blade wear, and lower power consumption.
Equipped with precision linear guideways, rack-and-pinion transmission, and a powerful main motor, the machine ensures smooth motion, vibration-free operation, and reliable performance even in heavy-duty granite cutting applications.
| Parts Name | Description |
|---|---|
| Beam (Bed) Size | Mild steel beam length 9 meter / 30 feet, suitable for 12’ cutting with Hiwin make 65mm linear guideway, rack & pinion system. |
| Blade Diameter (mm) | 2400 / 2500 mm (Blade Bore Ø150, Ø285) |
| Suitable Cutting Length (Feet) | 12′ |
| Cutting Depth (mm/Inch) | 1075 / 42″ |
| Max. Horizontal Stroke (X Axis) | 4000 |
| Max. Number Of Blade | 14 |
| Slicing Stroke (Y Axis) | 4200 |
| Max. Up-Down Stroke (Z Axis) | 850 |
| Main Motor Power | 150 HP (1440 RPM), IE-3 |
| Trolley Size (Manual) | 10′ × 12′ fabricated by 8 inch MS girder |
| Panel | Fully automatic computerized PLC & HMI control system |
| Total Power | 160 HP |
